Black Core and Color-Thru™ Phenolic partitions are engineered for exceptional performance in demanding, high-traffic environments where durability and strength are essential. Designed to withstand severe moisture from showers, pools, saunas, and routine hosing during maintenance, they are impact, water, humidity, and corrosion resistant and do not support bacteria. Their dense, resin-imprinted kraft paper core is decoratively faced on both sides, with surface sheets fused under high temperature and pressure for long-lasting structural integrity. Combined with stainless steel brackets and fasteners, this construction delivers outstanding durability and excellent screw-holding power.

Color-Thru™ Phenolic features consistent color throughout the material, while Black Core panels offer a full spectrum of color options with distinctive black edges for a clean, modern appearance. Both options are resistant to graffiti and well-suited for areas prone to vandalism. While highly durable, this material, like most partition types, is not scratch resistant.
Floor Mounted / Anchored Phenolic Stalls
For use in rooms where height is an issue.

  • No headrail
  • Pilasters go from the floor to the top of doors/panels
  • 70" total height
  • 12" clearance - floor to doors/panels
  • For concrete floors only
  • 2" min penetration into floor required
See All »

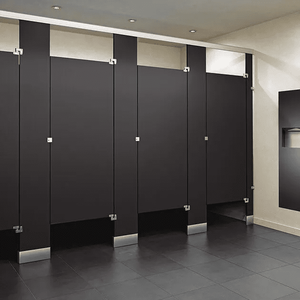

Floor Mounted / Overhead Braced Phenolic Stalls
Most popular & strongest/durable style.

An anodized aluminum anti-grip head rail secures partitions firmly to the walls.

  • Anti-grip headrail between the tops of the pilasters
  • pilasters are 82" total height
  • Bottom of door/panel is 12" off floor
See All »
Ceiling Hung - Phenolic Toilet Stalls
When used together with wall-hung fixtures, the entire floor is accessible for efficient cleaning. Structural steel ceiling supports are necessary to assure proper installation. Structural steel supports not supplied by All Partitions.

  • Pilasters attach to a ceiling steel structure
  • 12" clearance between bottom of the doors/pilasters/panels and floor
  • Standard ceiling heights are 7', 6', or 8'
See All »
Floor To Ceiling - Phenolic Restroom Stalls
This mounting style is extremely stable and durable as pilasters are anchored into both the concrete floor and the structural ceiling support.

  • Pilasters attach to the floor and ceiling
  • 12" clearance between the floor and doors/panels
See All »

Color Selection Guide

*Directional Pattern on panels wider than 60″, the pattern will run perpendicular to the pattern on doors and pilasters. Patterns shown are cropped from full-size sheets; contact us for additional references.

Refer to the color card for more accurate color matching. Due to variations in monitor settings, on-screen colors may not precisely match the actual product. If accurate color selection is critical, request physical samples prior to ordering. Colors are subject to change without notice.

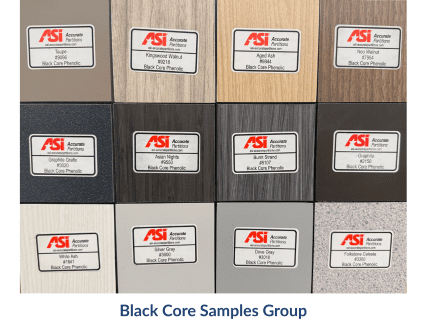

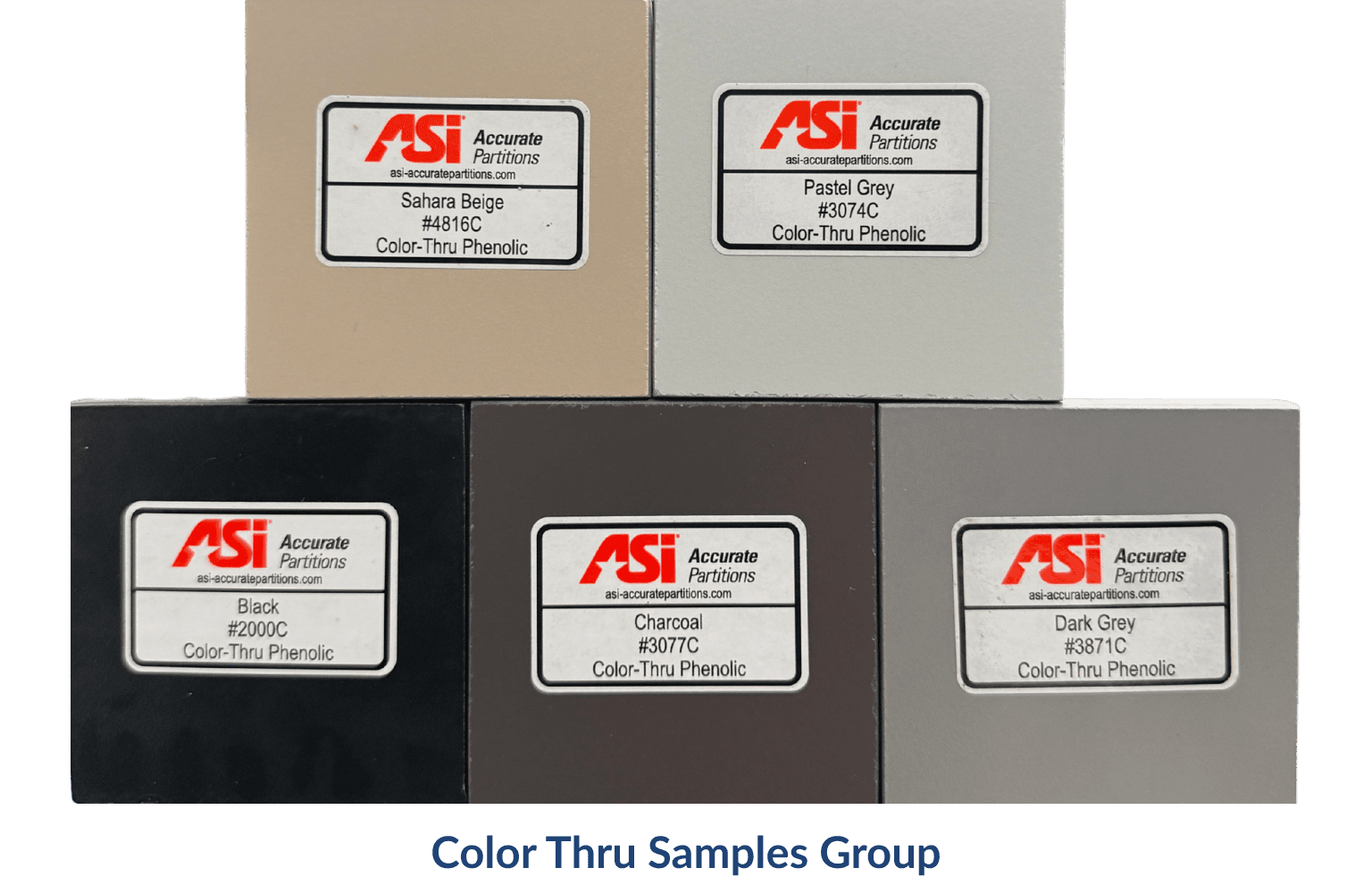

Color Thru Phenolic Color Sample GroupBlack Core Phenolic Color Sample Group

Color Thru

Sahara Beige 4816C
Pastel-grey 3074C
Dark Gray 3871C
Charcoal 3077C
Black 2000C

Black Core

Silver Gray 3000
White Ash 1841
Folkstone Celesta 3300
Dove Gray 3010
Taupe 9096
Kingswood Walnut 9218
Neo Walnut 7954
Aged Ash 9844
Graphite Grafix 3020
Burnt Strand 5107
Asian Nights 9550
Graphite 2150

Available Optional Hardware

Hardware options are available but may not be included in all standard orders. Each order is custom quoted and will include the appropriate hardware unless otherwise specified.
Stainless Steel Vault Hinges
Stainless Steel Vault Hinges
Stainless Steel Stirrup Brackets
Stainless Steel Stirrup Brackets
Stainless Steel Extended Depth Continuous Brackets
Stainless Steel Extended Depth Continuous Brackets
Stainless Steel Standard Depth Brackets
Stainless Steel Standard Depth Brackets
Stainless Steel U Brackets
Stainless Steel U Brackets
Aluminum Brackets
Aluminum Brackets
Chrome Plated Brushed Zamac Indicator Slide Latch
Chrome Plated Brushed Zamac Indicator Slide Latch
Chrome Plated Brushed Zamac Surface Mounted Slide Latch
Chrome Plated Brushed Zamac Surface Mounted Slide Latch
Stainless Steel Ultimate Privacy Surface Mounted Barrel Hinges
Stainless Steel Ultimate Privacy Surface Mounted Barrel Hinges
Stainless Steel Ultimate Privacy Latch and Occupancy Indicator
Stainless Steel Ultimate Privacy Latch and Occupancy Indicator
Chrome Plated Brushed Zamac Vault Hinges
Chrome Plated Brushed Zamac Vault Hinges
Stainless Steel Shoe
Stainless Steel Shoe
Stainless Steel Surface Mounted Slide Latch
Stainless Steel Surface Mounted Slide Latch
Continuous Stainless Steel Hinges
Continuous Stainless Steel Hinges
Stainless Steel Continuous Alcove Clip
Stainless Steel Continuous Alcove Clip
No Sight Strip
No Sight Strip

Privacy Options

Both Ultimate Privacy and Maximum Privacy are available for purchase. However, we custom quote these configurations. If interested, please call 866-255-8645 of fill out quote online .

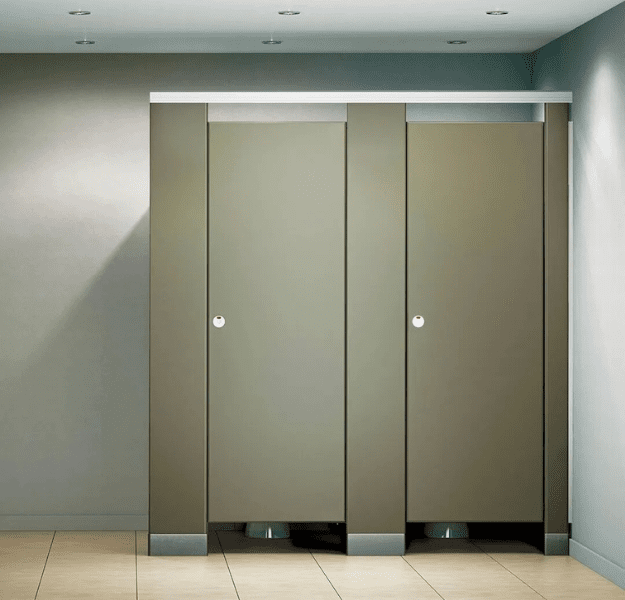

Ultimate Privacy
Ultimate Privacy
Extra height panels and doors, mounted lower to the floor and extended higher than normal to increase occupant privacy
Up to 72" high doors and panels.
Material options Phenolic, Stainless Steel, and Powder Coated
Fire Rating: Stainless Steel and Powder Coated A
Fire Rating: Black Core Phenolic B (A), Color-Thru Phenolic A

Features:

  • Elimination of all sightlines into compartments
  • Extra height panels and doors - mounted lower to the floor and extended higher than normal to increase occupant privacy
  • Elimination of all sightlines into compartments
  • Occupancy Indicator Latches
  • ADA Compliant

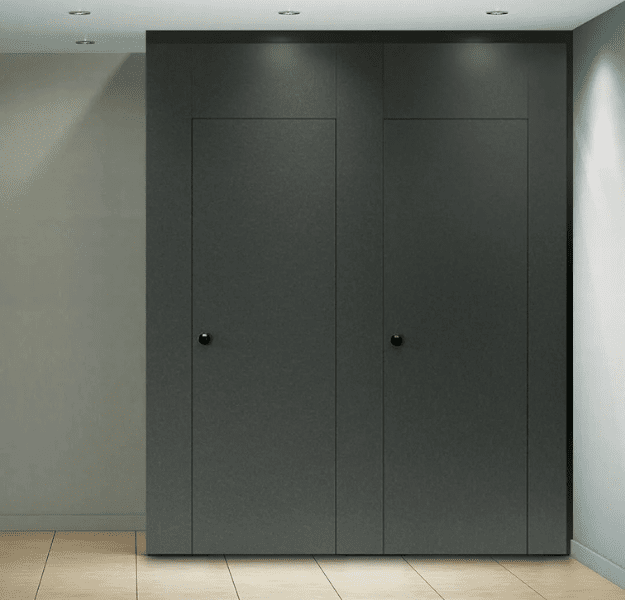

Maximum Privacy
Maximum Privacy
ASI Group now offers Phenolic Partitions up to 120" high. Floor mounted overhead braced partitions are offered up to 96" high as a standard. Both configurations are mounted 1" above finished floor for the Maximum in Privacy. Available in all ASI phenolic colors.
Up to 96" high floor mounted overhead braced option
Up to 120" high floor to ceiling option
Mounted 1" above finished floor
Warranty: 25 years
Fire Rating: Black Core Phenolic B (A), Color-Thru Phenolic A

Features:

  • Available in Phenolic
  • No Sight, Self Closing Silent Door
  • Black Anodized Hardware
  • Black Anodized Occupancy Indicator
