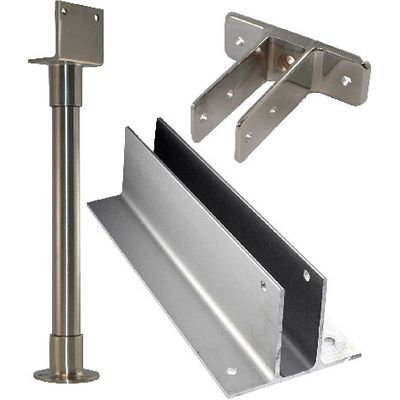

Brackets, Braces

Brackets, Braces
restroom partitions, bathroom partitions, toilet partitions Hardware is chrome plated zamak material unless specified.

Click here to go to Stainless Steel Hardware.

Click here to go to Aluminum Hardware.

Panel brace
Panel brace
Stainless steel floor mounted unit supports .5" to 1.25" thick panels. Height is adjustable from 11" to 18".
$60.50
Part # A6005
Pilaster Brace
Pilaster Brace
"U" brace for 1 1/4" pilasters, "L" brace fits any size up to 1 1/4" pilasters. Height adjusts 7 1/2" to 14". Use drop down to slecet style and adjustability.



Order part #s A8503, A8513, A8509, A5819, A5818 and A5808 here


Prices start at:
$60.50

choose style and adjustability:
Panel pilaster 'U' bracket, 1.5" high
Panel pilaster 'U' bracket, 1.5" high
1.375" long x 1.5" high chrome plated. Part # A0191 would be used to connect 1" panels to intermediate stall pilasters.



Order part #s A0189, A0190, A0191 and A0194 here


Prices start at:
$2.75

choose panel/pilaster thickness:
Panel pilaster one ear bracket, 1.5" high
Panel pilaster one ear bracket, 1.5" high
2.5" long x 1.5" high chrome plated.



Order part #s A0164, A0165, A0176 and A0184 here

Prices start at:
$3.20

choose panel/pilaster thickness:
Panel pilaster two ear bracket, 1.5" high
Panel pilaster two ear bracket, 1.5" high
2.5" long by 1.5" high chrome plated



Order part #s A0162, A0163, A0175 and A0183 here


Prices start at:
$3.50

choose panel/pilaster thickness:
Angle brackets, 1.5" high
Angle brackets, 1.5" high
1.5" high x 1.75" long x 1.75" wide.

Order part #s A0160 and A0160SS here


Prices start at:
$11.25

choose material of bracket:
One Ear Urinal Screen Bracket, 1.5" high
One Ear Urinal Screen Bracket, 1.5" high
3 1/2" long by 1 1/2" high. Chrome plated.



Order part #s A1270 and A1310 here

Prices start at:
$6.25

choose screen thickness:
Urinal screen two ear heavy duty brackets, 1.5" high
Urinal screen two ear heavy duty brackets, 1.5" high
  • The 1" & 1-1/4" sizes are 3-1/2" long.
  • The 3/4" size is 2-1/2" long.




    • Order part #s A1590, A1280 and A1330 here.

    Prices start at:
    $6.25

    choose screen thickness:
    		2_Piece "Any Size" 1.50" high panel/pilaster/ Screen Bracket
    2_Piece "Any Size" 1.50" high panel/pilaster/ Screen Bracket
    Adjusts to fit any size pilaster/ panel/ screen. 3 1/3" long by 1 1/2" high. Chrome plated.



    Order part #s A1860 and A1320 here

    Prices start at:
    $5.45
    Select length:
    2 Ear Flexy Bracket
    2 Ear Flexy Bracket
    Spring Loaded Bracket, Chrome Plated Stamped Steel
    $37.00
    Part# A0FLX
    		Full height panel/screen 'U' bracket, aluminum, stainless steel
    Full height panel/screen 'U' bracket, aluminum, stainless steel
    1.5" long for 1" thick panel/screen. Cast Aluminum or Stamped Stainless Steel. Holes per bracket: 54"-5, 57"-5. Use screws in all holes for a strong installation.

    Order parts #s A2794, A091c, A2799 and A2369 here


    Prices start at:
    $20.56

    choose height and material:
    		Full height panel/screen one ear bracket, aluminum, stainless steel
    Full height panel/screen one ear bracket, aluminum, stainless steel
    For 1" thick panels and screens. 2-3/4" long. Cast aluminum and stamped stainless steel. Holes per bracket: 54"-5, 57"-5. Use screws in all holes for a strong installation.

    Order parts #s A0176C, A2878, A2339 and A2879 here

    Prices start at:
    $44.00

    choose material and height:
    Full height pilaster one ear bracket, aluminum, stainless steel
    Full height pilaster one ear bracket, aluminum, stainless steel
    For 1-1/4" thick pilasters. 2-3/4" long. Cast aluminum are 57-1/2" high and stamped stainless steel are 57" high. Holes per bracket: 57"-5. Use screws in all holes for a strong installation.

    Order part #s A0184c and A2359 here


    Prices start at:
    $44.00

    choose material:
    		Full height panel /pilaster /screen two ear bracket, aluminum, stainless steel
    Full height panel /pilaster /screen two ear bracket, aluminum, stainless steel
    2.5" long for 1" panel/pilaster/screen. Cast Aluminum or Stamped Stainless Steel. Holes per bracket: 41"-4, 54"-5, 57"-5. Use screws in all holes for a strong installation.

    Order part #s A2888, A2826, A0175C, A2609, A2869 and A2349 here


    Prices start at:
    $36.58

    choose height and material:
    		Full height "L" Bracket for Panel/ Pilaster/ Urinal Screens, aluminum
    Full height "L" Bracket for Panel/ Pilaster/ Urinal Screens, aluminum
    57" height by 2 3/4" long by 1 3/8" wide. Cast aluminum material. Holes per bracket: 57"-5. Use screws in all holes for a strong installation.
    $33.00
    Part No. a2684
    Urinal screen bracket, 1.5" high
    Urinal screen bracket, 1.5" high
    Chrome plated. Click here to view PDF of Bracket Dimensions

    Order part #s AWB25 and AWB27 here


    Prices start at:
    $10.75

    choose pilaster width & bracket length:
    		Panel pilaster alcove clip set, 1.5" high
    Panel pilaster alcove clip set, 1.5" high
    2 per set. Used to join panel edge to pilaster or panel edge. Part # A8340 is chrome plated zamak (shown above). Part# A8369 is stainless steel.

    Use drop down arrow to choose between part #s A8340 and A8369


    Prices start at:
    $2.70

    choose material thickness:
    		Panel pilaster alcove clip, 1.5" high
    Panel pilaster alcove clip, 1.5" high
    1" panel to 1-1/4" pilaster
    $2.00
    Part # A0155
    Headrail end plug
    Headrail end plug
    For 1.5" x 1" rectangular tubing
    $2.10
    Part # A0666
    		Headrail anti- grip tubing end plug
    Headrail anti- grip tubing end plug
    Chrome plated, Dimensions are width and height of rectangular part of opening that end cap goes into. #A0665 is used on Accurate Partition headrail.

    Order part #s A0667 and A0665 here
    $4.00

    Choose size in inches:
    		Headrail bracket
    Headrail bracket

    Order part #s A0215 and A0213 here
    $2.55

    choose headrail thickness:
    Partition hinged 1 ear bracket, 3" high
    Partition hinged 1 ear bracket, 3" high
    Used to install partitions at an angle. 2 1/2" long. Stamped stainless steel.

    Use drop down arrow to choose between parts A11359 and A11369


    Prices start at:
    $19.50

    Choose partition thickness:
